Forged steel ball production line

Good roundness of steel ball | Uniform external dimensions
Internal and external hardness balance | Wear resistant and not easily broken

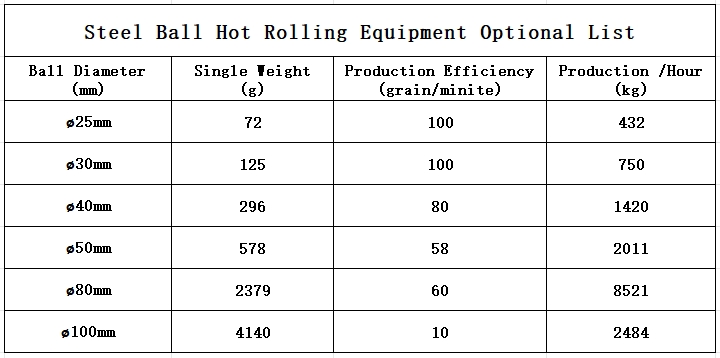

Workpiece specifications: 20mm to 120mm, length 6000mm. Workpiece materials: 65Mn, 60Mn, 40Cr, 45, etc
Zone heating method: induction medium frequency heating furnace
Heating temperature: 950~1050 ℃
remarks
Non standard customized equipment, designed according to customer requirements

steel-ball-forging-rolling-line12111111111111

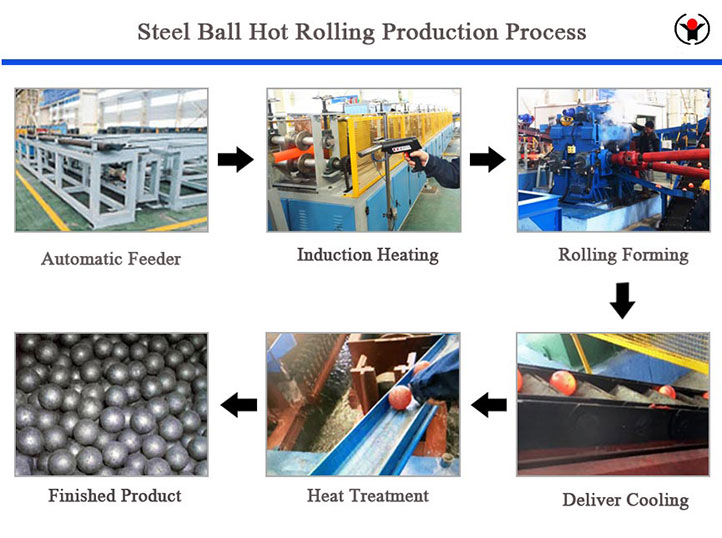

Composition and characteristics of steel ball hot rolling equipment
Storage rack and intermediate frequency heating furnace
The electric furnace has a material rack for storing 6000mm long round steel, with functions such as automatic feeding, automatic feeding, automatic temperature measurement, and fault alarm. It has a high degree of automation and can ensure continuous production of steel ball production lines.
Universal coupling
The connection between the motor and the reducer, as well as between the reducer and the dual output reducer, adopts an elastic pin coupling with low noise and smooth transmission.
PLC intelligent control cabinet
The electrical control part has motor start, stop, and speed control buttons, equipped with voltage and current meters to monitor voltage and current in a timely manner. In addition, there are functions such as door opening power-off and motor overcurrent protection.
IGBT induction heating power supply
DSP fully digital control device, after process adjustment and load adjustment, can adapt to variable frequency and load, automatically adjust power and stabilize control.

steel-ball-hot-rolling-production-line212111111
