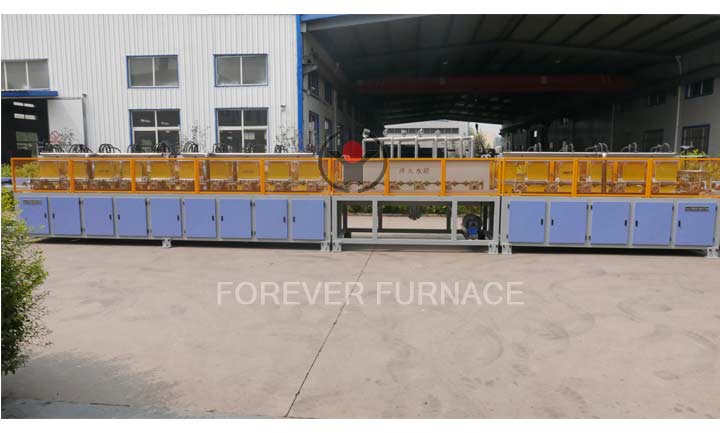

Hebei Forever electromechanical Co., Ltd. specializes in the production of steel bar quenching and tempering heat treatment furnace. The steel bar quenching and tempering heat treatment furnace uses the self tempering method after quenching, and the power consumption per ton is 420-180 degrees. The feeding group, sensor group and discharge group are controlled independently, which is conducive to continuous heating without gaps between workpieces. We have many years of experience in the production of induction heating equipment in the steel bar quenching and tempering heat treatment furnace, which is energy-saving and environmental friendly.
Characteristics of steel bar quenching and tempering heat treatment furnace:
1. The steel bar quenching and tempering heat treatment furnace is controlled by resonant medium frequency power supply, which can achieve high power.
2. Conveying roller table: the axis of the roller table forms an included angle of 18~21° with the axis of the workpiece;, The workpiece rotates automatically and advances at a uniform speed to make the heating more uniform. The roller table between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled. The roller table of other parts is made of 45 steel and the surface is quenched.
3. Roller table grouping of steel bar quenching and tempering heat treatment furnace: the feeding group, sensor group and discharge group are controlled independently, which is conducive to continuous heating without gaps between workpieces.
4. Temperature closed-loop system: both quenching and tempering adopt American Leitai infrared thermometer and form a closed-loop control system with German Siemens S7. The temperature is controlled accurately and the heating is more uniform.
5. The steel bar quenching and tempering heat treatment furnace is controlled by the industrial computer system, which displays the status of the working parameters at that time in real time, and has the functions of workpiece parameter memory, storage, printing, fault display, alarm and so on.
6. After quenching and tempering heat treatment, the grinding rod has no cracks, and the qualification rate is up to 99%.
7.Forever’s intelligent control technology of parallel and series resonance with independent intellectual property rights and full touch-screen digital operation occupy a leading position in China and the world.
8. The team of senior engineers for many years can provide excellent systematic solutions, and the product manufacturing strictly complies with the national standards of gb/t10067.3-2005 and gb/t5959.3-1998.
