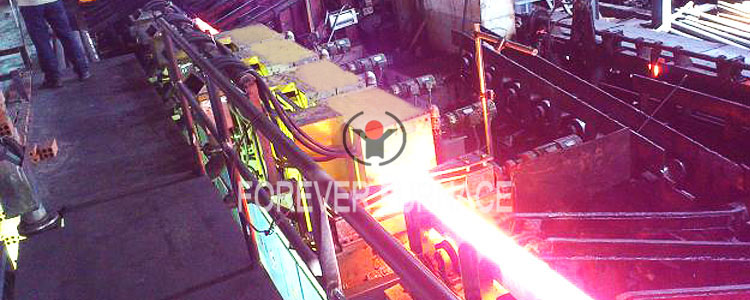

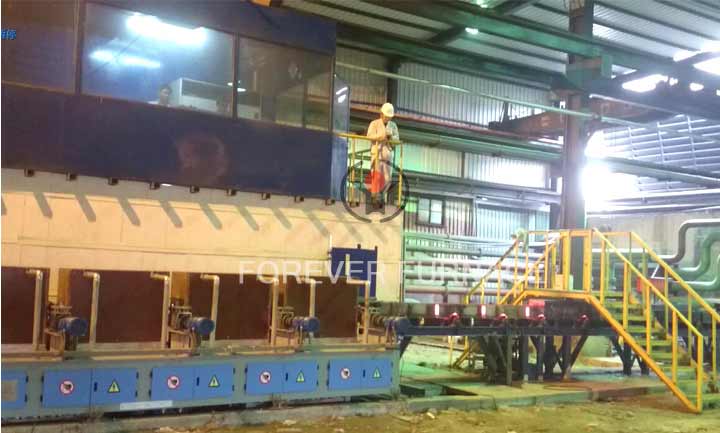

The Forever Continuous casting billet reheating furnace is designed specifically for 100mm to 200mm square billets, with a suitable length range of 3000mm to 12000mm. The hourly output can reach 40 tons to 300 tons, and the power supply system provides 1000 watts to 12000 kilowatts of power, with a frequency of 500-1200HZ. It supports independent use of a single power supply or parallel use of multiple power supplies.
The feeding system of the steel billet induction heating system adopts an independent motor reducer for each axis, and is equipped with multi axis drive. It is controlled by a single frequency converter to achieve multi axis synchronous operation, ensuring the smoothness of steel billet transmission. The guiding system uses 304 non-magnetic stainless steel guide wheels, which have moderate elasticity in the axial direction and are suitable for small bending of steel billets.
The temperature control of the Billet continuous casting production line consists of a closed-loop system consisting of an infrared thermometer and a PLC. Automatically adjust the power supply based on the initial temperature and feed rate of the steel billet to ensure a constant heating temperature before discharge. The industrial computer system supports real-time display of current working parameters, workpiece parameter memory, storage, printing, fault alarm and other functions. It automatically adjusts the power supply to maintain a constant temperature. Forever Electromechanical provides professional induction heating system solutions according to customer needs.
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
Post time: 02-24-2025
