The steel ball hot rolling production line is an advanced steel ball production process that uses rolling technology to produce steel balls. This method has significant advantages compared to traditional casting and forging processes. The characteristics of the hot-rolled steel ball production line include high efficiency, high output, high degree of mechanization and automation, stable quality, high hardness, good wear resistance, low energy consumption, and no pollution. Hot rolled steel balls are gradually replacing traditional cast and forged steel balls due to their excellent performance.
The production process of steel ball hot rolling production line usually includes the following steps:
Raw material preparation: Use round steel bars with the same diameter as the required steel balls as raw materials, which require strict inspection.
Heating treatment: Round steel bars are heated to the appropriate rolling temperature in a continuous heating furnace, usually around 1050 ℃.

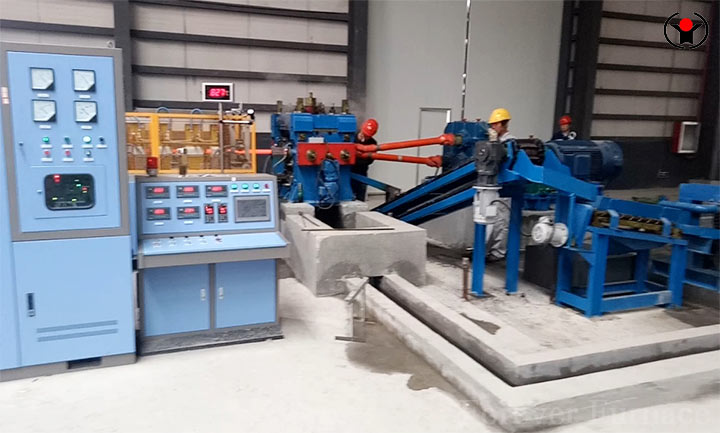

Rolling forming: Round steel bars in a red hot state are fed into a steel ball rolling mill and continuously rolled into steel balls by rotating between rollers with special spiral hole patterns.
Heat treatment: The rolled steel balls immediately enter the online heat treatment equipment for quenching and tempering treatment to obtain the required hardness and mechanical properties.
Quality inspection: Steel balls that have undergone heat treatment will undergo a series of quality inspections such as hardness, impact testing, drop ball testing, and metallographic testing.
Finished product packaging: Qualified steel balls are packaged and then shipped to customers.
application area of the steel ball hot rolling equipment
Hot rolled steel balls are widely used in various industries such as black and non-ferrous metal mining and beneficiation plants, thermal power plants, cement plants, refractory material plants, etc. due to their excellent wear resistance and stable physical properties.
