Hebei FOREVER mechanical and Electrical Manufacturing Co., Ltd. is a company specializing in the research and development, design, technology, application, manufacturing and sales of induction heating equipment. It has rich experience and practice cases in the Steel bar hardening and tempering equipment . According to your manufacturing requirements, the technology is customized for you.

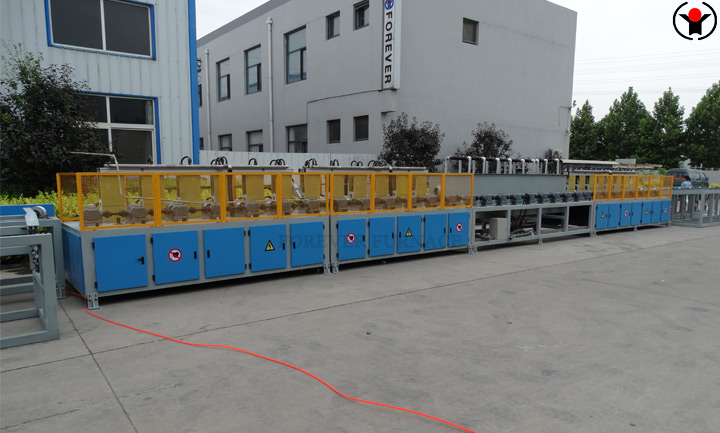

Main technical parameters of round steel bar induction heat treatment machine :
● power supply system: quenching power supply: 160-1000kw / 0.5-2.5khz; tempering power supply: 100-600kw / 0.5-2.5khz, hourly output: 0.5-3.5t.
● conveying roller table: the axis of the roller table and the axis of the workpiece form an included angle of 18-21 & deg.; the workpiece rotates while moving forward at a constant speed, so as to make the heating more uniform. The roller table between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled.
● roller table grouping: the feed group, inductor group and discharge group are controlled independently, which is conducive to continuous heating without gaps between workpieces.

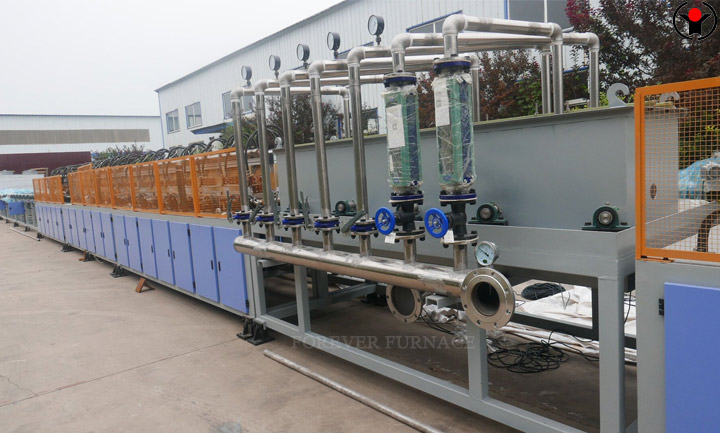

● temperature closed-loop control: both quenching and tempering are controlled by American raytime infrared thermometer and a closed-loop control system composed of German Siemens S7, with precise temperature control.
● industrial computer system: real-time display of working parameter status, workpiece parameter memory, storage, printing, fault display, alarm and other functions.
▲ energy conversion: adopt quenching + tempering mode, power consumption per ton is 280-320 degrees.
● provide remote operation platform with touch screen or industrial computer system according to the user’s needs.
● specially customized human-machine interface, highly humanized operation instructions.
● fully digital, high-depth adjustable parameters, so that you can easily control the equipment.
● strict level management system and perfect one key reduction system.
● provide corresponding language switching according to different countries and regions.
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of induction heat treatment furnace in China; Glad to be your business partner in induction heating field.
Post time: 06-24-2024
