Main technical parameters of the equipment:
● Workpiece materials: B2, B3, B6, 70Cr2, 75Mncr, 65Mn, 60Mn, GCr15, 40Cr, 45 #.
Power supply system: KGPS200-6000KW or IGBT200-2000KW, with an hourly output of 0.2-16 tons.
Infrared temperature measurement: An infrared temperature measurement device is installed at the discharge end to ensure that the temperature of the bar before entering the rolling mill is consistent.
▲ Energy conversion: Heating to 930 ℃~1050 ℃ consumes 260-280 degrees of electricity.
.

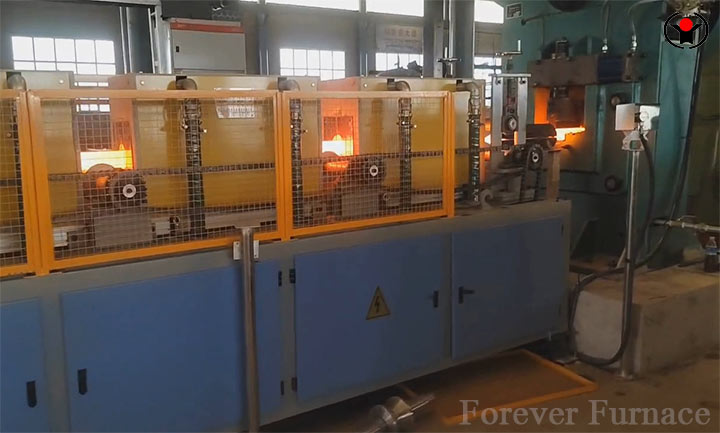

Main technical parameters of steel ball hot rolling production line:
Workpiece materials: B2, B3, B6, 70Cr2, 75Mncr, 65Mn, 60Mn, GCr15, 40Cr, 45 #.
Power supply system: KGPS200-6000KW or IGBT200-2000KW, with an hourly output of 0.2-16 tons.
Sensor design: variable pitch, temperature gradient design, for higher efficiency.
Elastic adjustable pressure roller: enables workpieces of different diameters to feed at a uniform speed, and the roller tracks and pressure rollers between the furnace bodies are made of 304 non-magnetic stainless steel and water-cooled.
Infrared temperature measurement: An infrared temperature measurement device is installed at the discharge end to ensure that the temperature of the bar before entering the rolling mill is consistent.
▲ Energy conversion: Heating to 930 ℃~1050 ℃ consumes 260-280 degrees of electricity.
Working principle of steel ball hot rolling equipment:
The working principle of spiral pass oblique rolling is shown in the figure. Two rolling rolls with spiral passes cross each other’s axes, and the rolling rolls rotate in the same direction to drive the circular rolling piece to rotate and move forward. Under the action of the spiral pass, the rolling piece forms a blank of the rotating body part. The deformation of oblique rolling is mainly due to axial extension of diameter compression.
